Name: Delta X G2/12
SKU: 227812

Product Details ＋

SPECIAL ORDER PRODUCT. LEAD TIME OF UP TO 4 WEEKS

Portable version of our iProtect Delta X Real-time Countersurveillance sweeping system and spectrum analyzer. No training needed, easily identify threats with our built in frequency library. Get 24/7 monitoring with Delta X.

Comes with a 2 hour introduction to Delta X video class for Free! 24/7 Monitoring

Design Advantages

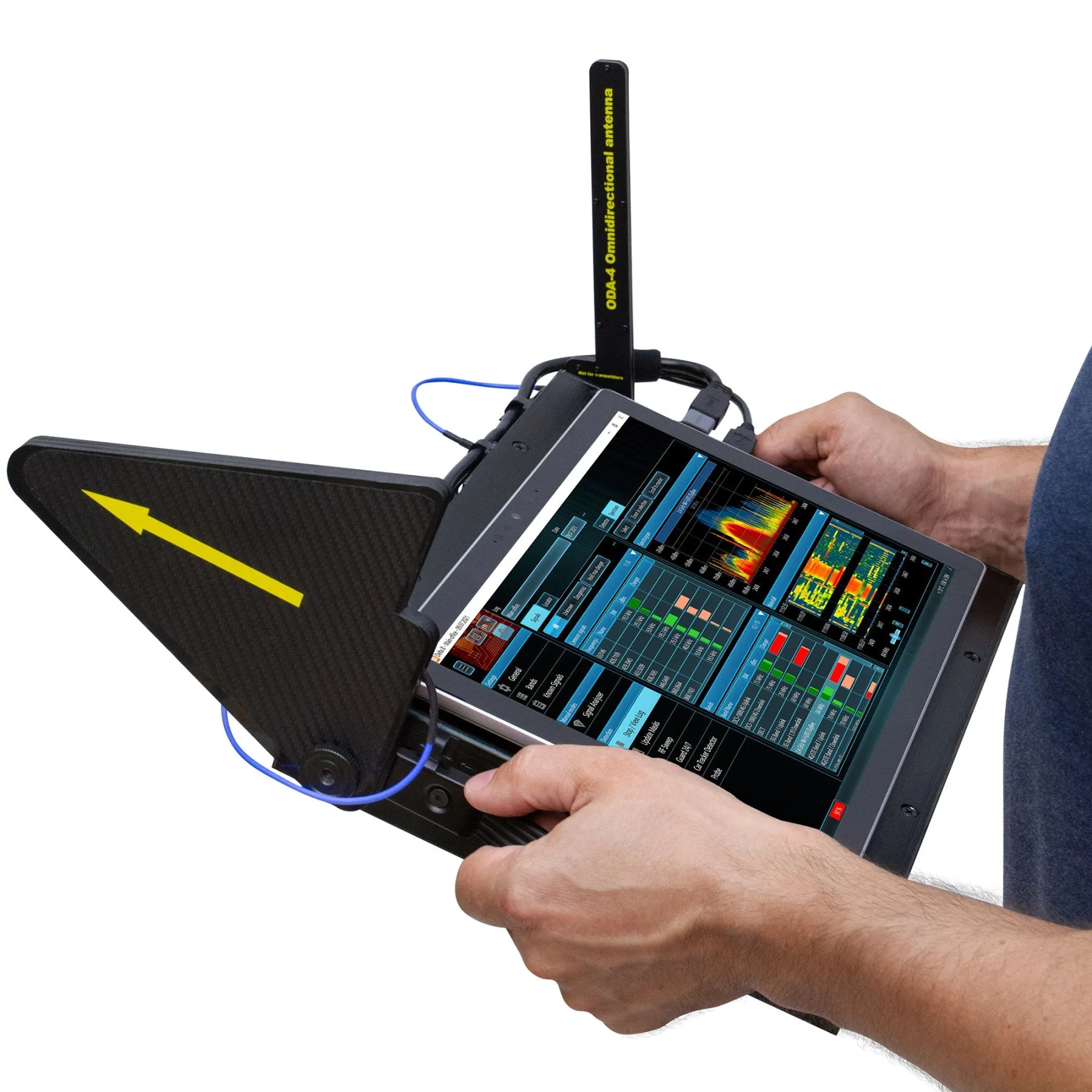

Easily carry the Delta X G2 from room to room with the new Portable design
Price point Delta X G2 is an affordable Spectrum Analyzer

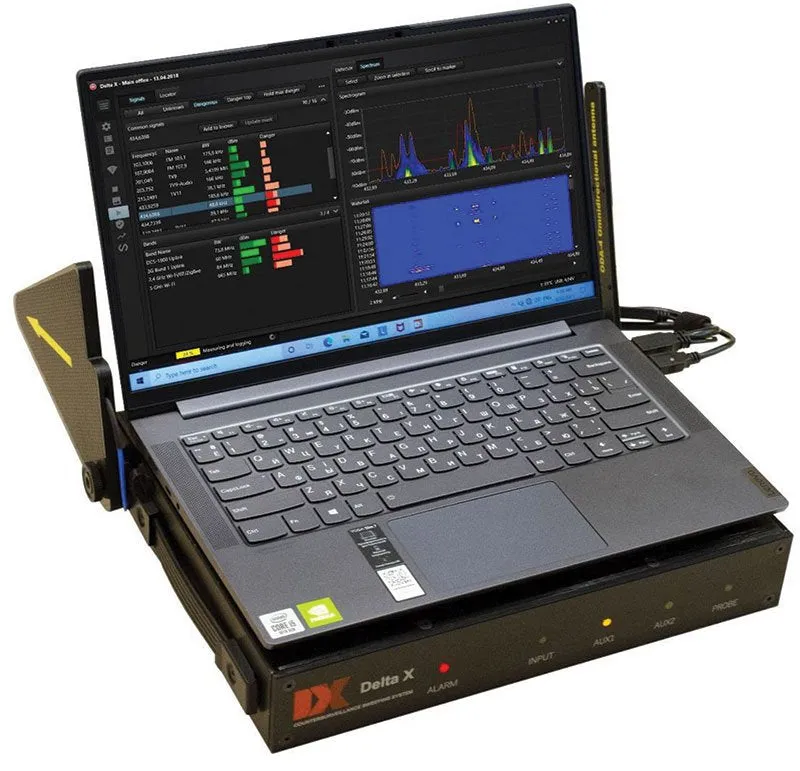

Mount existing Laptop or tablet with use of provided magnetic holders
Compatible with touch screens
24/7 monitoring with High capacity of a laptop or tables hard drive enables full data logging
Side handles for ease of carrying
All antennas fixed to the main unit
Unique to all Delta X built-in frequency library takes the "guessing out of sweeping"
Operators level of knowledge is no problem with the Delta X as anyone can easily deploy using the "Update Mask" procedure. Everything is done automatically. After detection starts the operator is warned by audio alarm when a dangerous signal is detected.

Features

Quickly and reliably detects all kinds of RF listening devices, including analog, digital, constantly transmitting and intermittent signals , sending audio or video, with or without encryption
Finds hidden surveillance devices employing the digital standards GSM, 3G, 4G/LTE, 5G
Detects illegal information transmission in AC, telephone, Ethernet, alarm and other wires as well as in the infrared range with the help of the supplied Multifunction Probe
Modes: instant detection mode, guarding/Monitor mode, locating mode and car tracker detection
Has a 20-50 times higher sensitivity and detection distance compared to conventional RF detectors and near-field receivers
No need to be onsite Monitor the RF environment 24 hours a day with data logging
"Known Signals" the operator can easily distinguish between safe and dangerous signals
Mobile and wireless bands can be adjusted to the bands employed in the country of use with supplied data files.

Note: Laptop or tablet is not supplied in this set

Requirements for Laptop or tablets:

Intel Core i3/AMD Ryzen 3 or higher ( Intel Core i5/AMD Ryzen 5 Recommended)

1x USB 3.0/3.1/3.2 or ( USB Type C), 1 USB 2.0 or ( USB Type C)

Ram 8Gb or more, SSD 128Gb or more

Windows operating system only 7,8,10 or Newer

Screen size 12-14 inches

Specifications

Frequency Range: 9 kHZ-12 Ghz
Fields of "Bands" table: Begin, End, Name, Type, Threshold, Priority, Tracker Detection
Fields of "Signals" table: Frequency, Bandwidth, Name, dbm Peak level, Danger Level, Peak Danger Level
Updated spectrum span: RF Sweep, Guard 24/7:broadband, Signal Analyzer: displayed, selected, real-time, Car Tracker detector: mobile bands
Detector's modes: Wide-Range, Signal, Selection
Spectrogram's displayed data: Persistence, Live Max, Threshold
Spectrum graphs: Spectogram, Waterfall
Displayed dynamic range: 0.5,1,2,5,10,25,50,100,200,500,1000,2000,3000,6000,12000 MHz
Temperature Range:0 C to 65 C
Spectrum resolution: 9,8 kHz
occupied disk space per 24 hours <12 GB
Probe inputs: PROBE
Antenna inputs: INPUT, AUX & AUX2
Reaction time: 3-4 sec
Update rate 3-4 GHz/sec
Fields of "Known Signals" Table: Frequency, BW, Name, Modulation

Includes

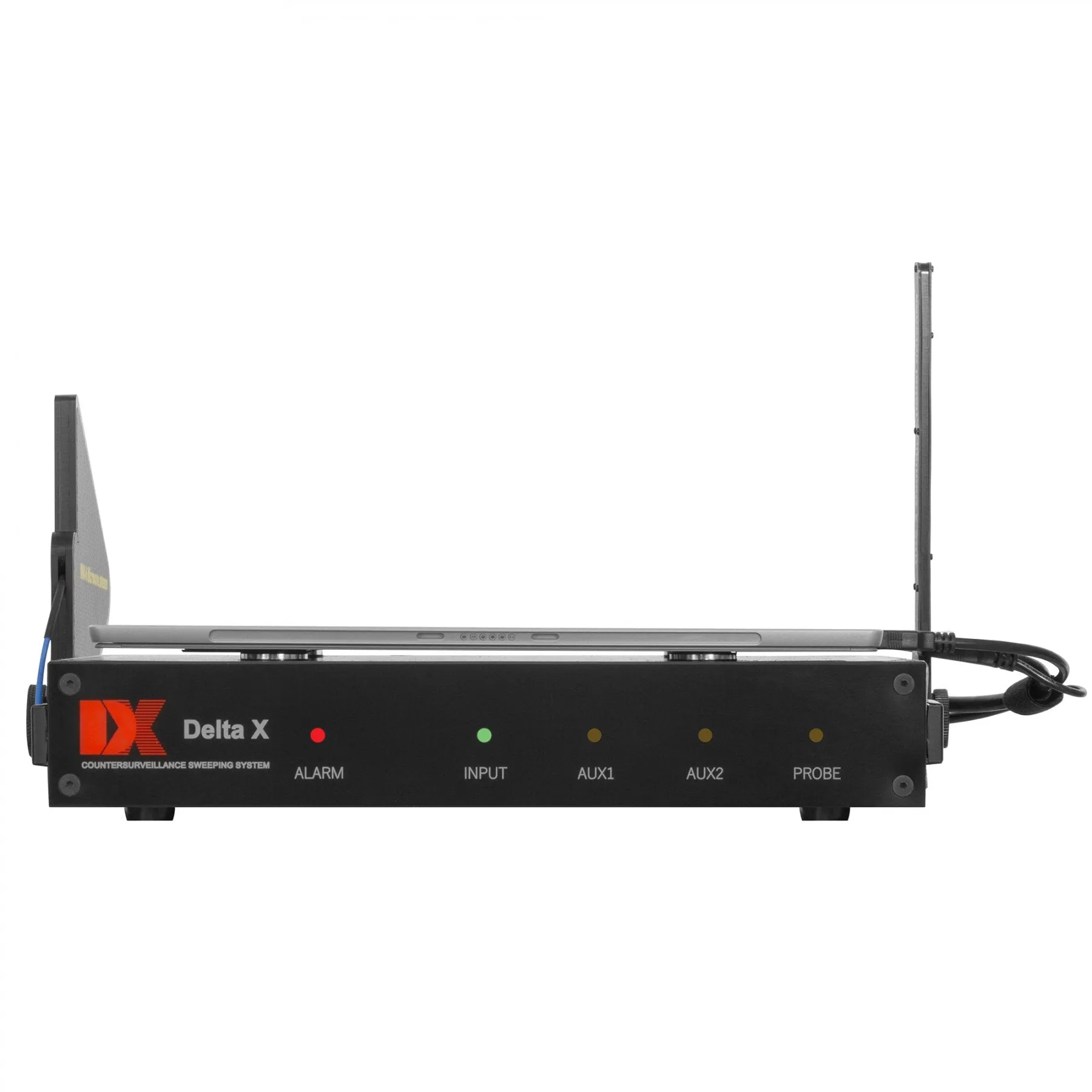

Main unit with the built-in spectrum analyzer and RF switcher

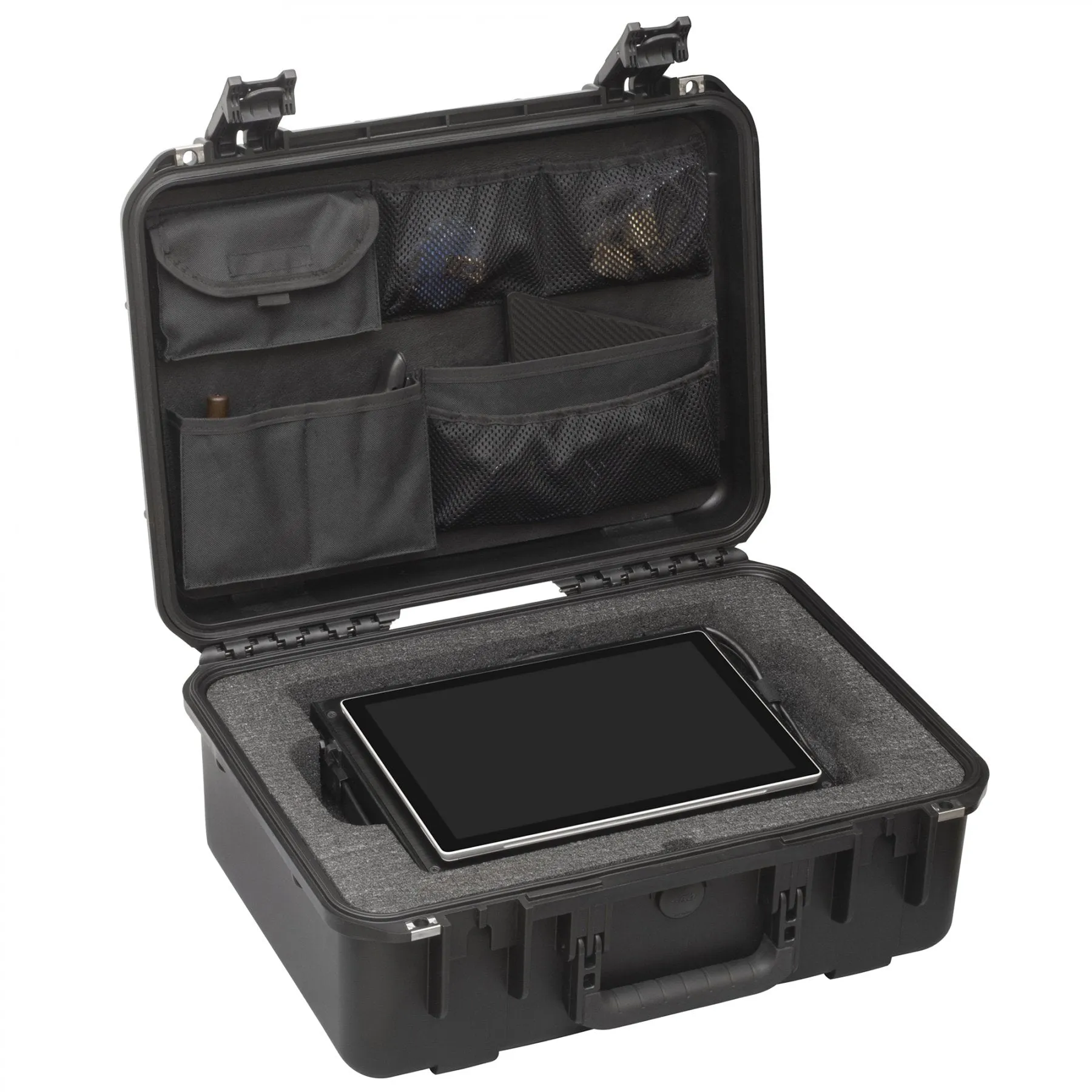

Carry case
Software Delta X on the USB drive
ODA-4 - omnidirectional wideband antenna with screw
MWA-6 - microwave antenna with screw
LPDA-12 - microwave antenna
Multifunction Probe with cables (high-voltage cable, low-voltage cable, coaxial cable 2m)
In-line modular adapter
Set of accessories (USB Type C to USB Type A adapter - 2, angle USB adapter - 2,
magnetic stickers for laptop/tablet - 4)
