Simplify

Wet Materials:  EPDM, PTFE and PVDF (Check compatibility )

Max Pressure: 232 psi

Max Flow Rate: Adj from 0 to 6.6 GPH

Power:  110 VAC and 220 VAC

Control: Full digital with control inputs.  Manual/External (pulses and 4-20mA)

Pump Type: Diaphragm

Box contains: complete pump, injection valve, foot valve and 5 ft of suction and discharge tubing.

Simplify is our way of making it easier for you to decide if this is the correct pump for you. Make sure the wet materials are compatible with the chemical (use compatibility chart ), the pump can achieve the maximum pressure and flow rate, it can use the power source available and, the control is the one you need for your application. Anything else is "bells and whistle"

More Info

This is the top of the line from SEKO S.p.a. Fully digital with both  speed and stroke length control trough very easy to understand menus in 5 languages.

Quick to install, easy to operate and very reliable metering pump.

This high quality and intelligently designed chemical injection diaphragm pump is a solenoid driven metering pump that will reduce the time spent installing, maintaining and operating them in the field. Less time working on servicing the pump means more time for more productive tasks. With a facing forward design that simplifies maintenance, reduced footprint, and enhanced diaphragm endurance, #yamapump is the ideal device to optimize the service time and increase your productivity.

SPECIFICATIONS

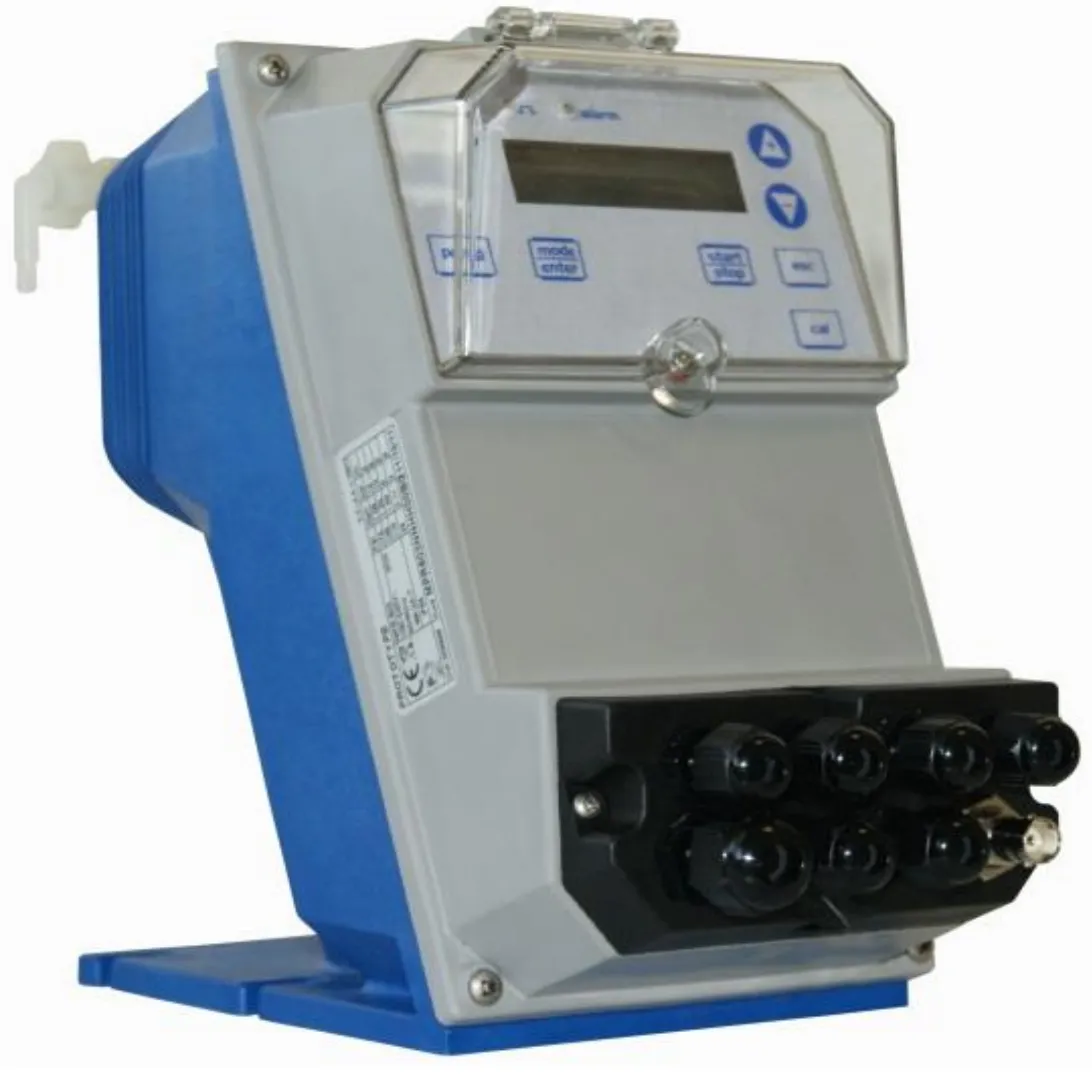

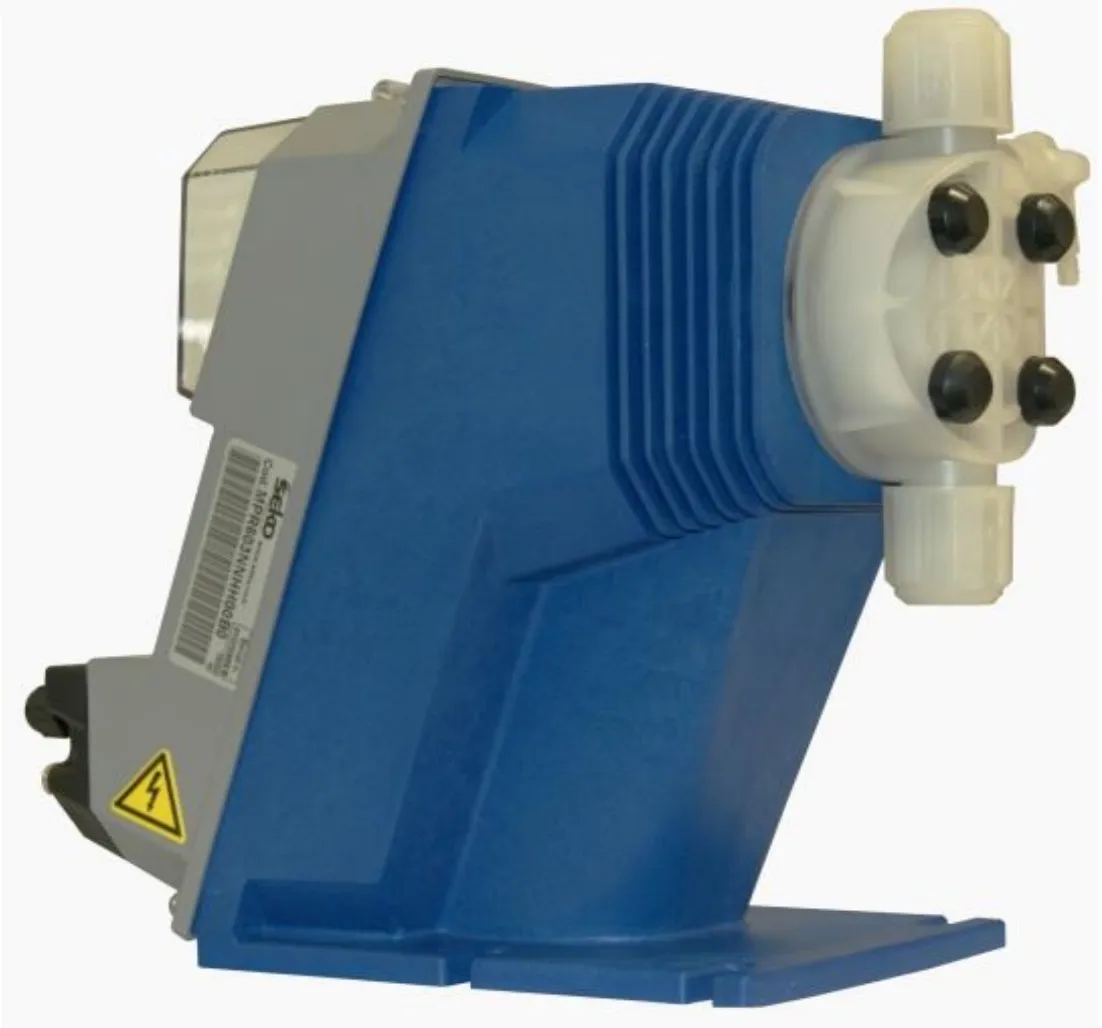

SEKO Maxima Plus MRP 800 with Digital Interface and EPDM Seal

Digital  metering pump with constant or proportional flow rate, manually adjustable 0-100%, level control input.

- Constant flow rate manually adjustable, proportional flow rate according to an external analog (0/4-20 mA or 20-4/0 mA) or digital signal (water meter, 1:n or n:1); Timer function; Dosage in ppm; Dosage batch; Statistics; Password;Input ON-OFF (remote switch)

- Fast extractable electric connections protected by a lid.

- PVC suction tube, PE delivery tube.

- Case made in PP reinforced with fiber glass, IP65 rated.

- Flow rates: from 5  to 6.6 GPH

- Max back pressure: up to 232 psi

- Power supply: 100 divided by 240 Vac - 50/60 Hz

- Stroke frequency: 300 strokes/minute

- Seal: EPDM

- Electronic stroke length regulation: from 30 to 100%

- Pump head and Connections: PVDF

- Diaphragm: PTFE

- Color: Blue/Grey

- Manually priming valve

- Complete installation kit composed by: foot filter, injection valve, screws.

- Installation kit: Included

Check your chemical's material compatibility !
