Attention
1. The equipment is not waterproof and can not use alcohol to scrub the shell.
2. The surge pulse input from the DC JACK port may cause device damage. It is highly recommended to use a standard 12V adapter.
3. The UPS-18650 battery is not included in the product.
Features
- Alternative charging modes: Supply by UPS-18650 dual chargeable battery, DC jack, and PoE function
- Multiple wireless communication: Provide LoRaWAN/LTE/4G/5G all four data transmission abilities with antennas
- Onboard industrial interface: Support RS-485, RS-232, and CAN Bus high-speed connection
- Onboard massive storage: Available card slot supporting SSD with M.2 B KEY, SATA 2.0
- Onboard audio capability: Equip with two microphones and one speaker for expandable Al-powered capabilities
Description

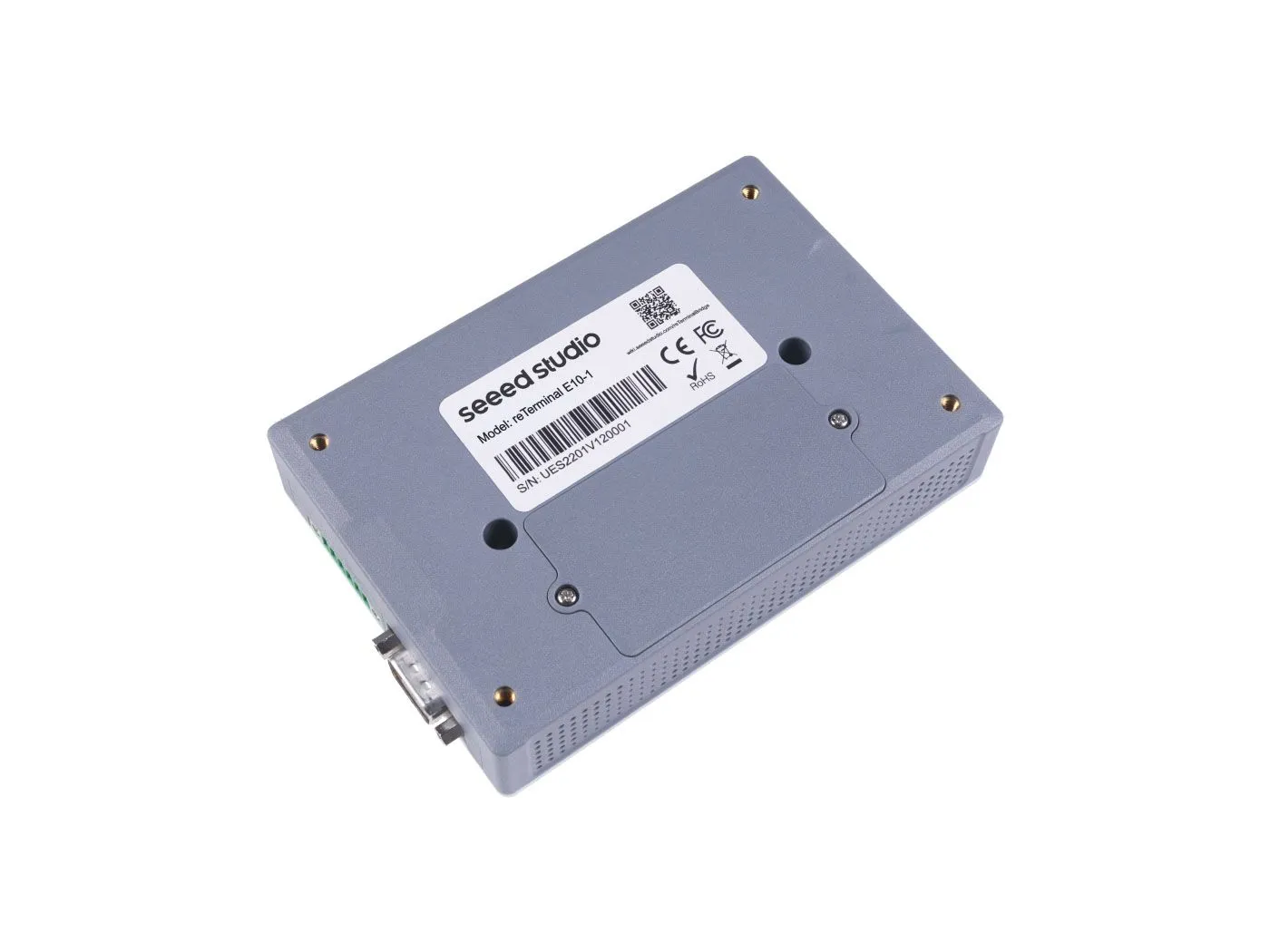

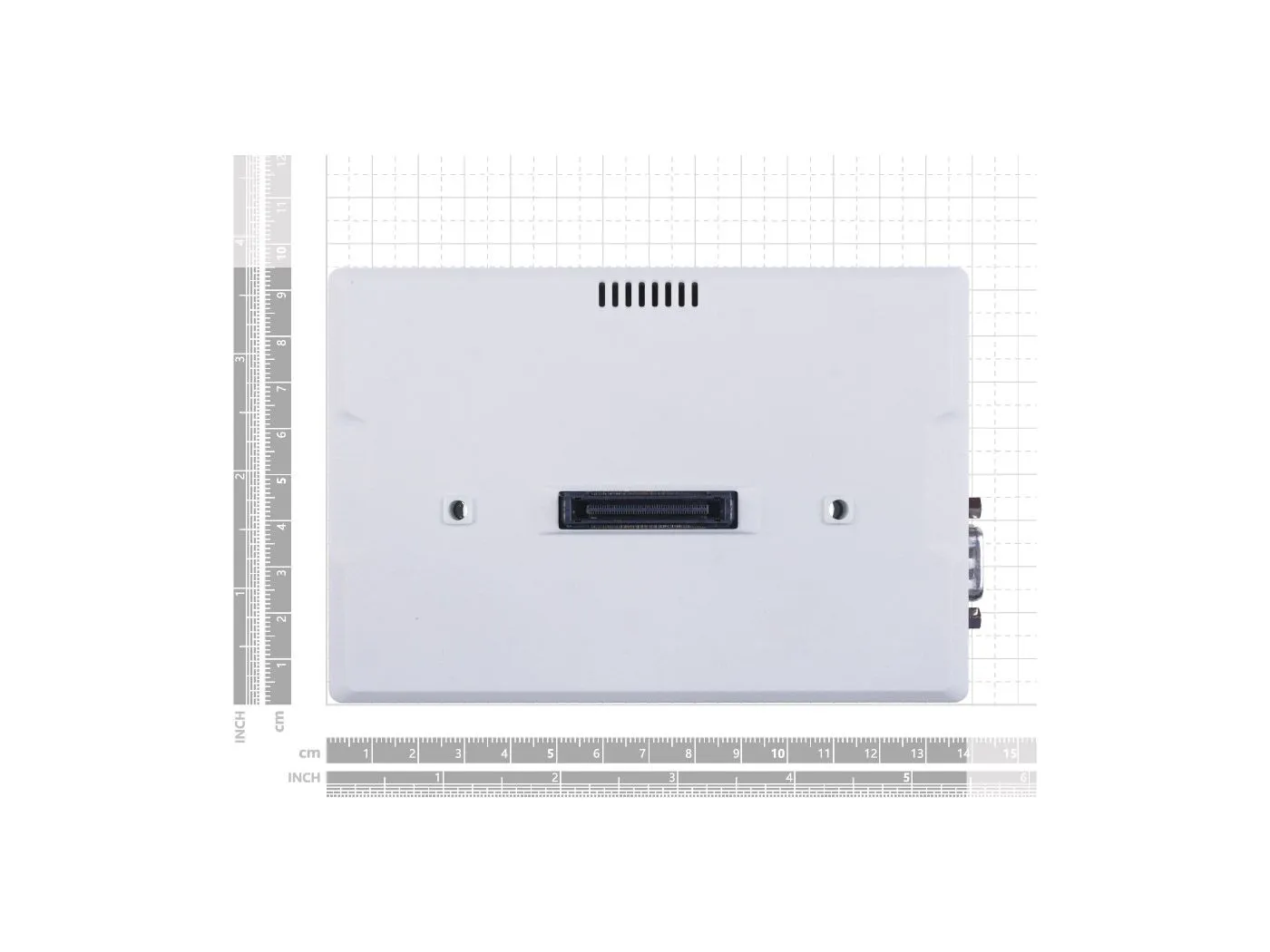

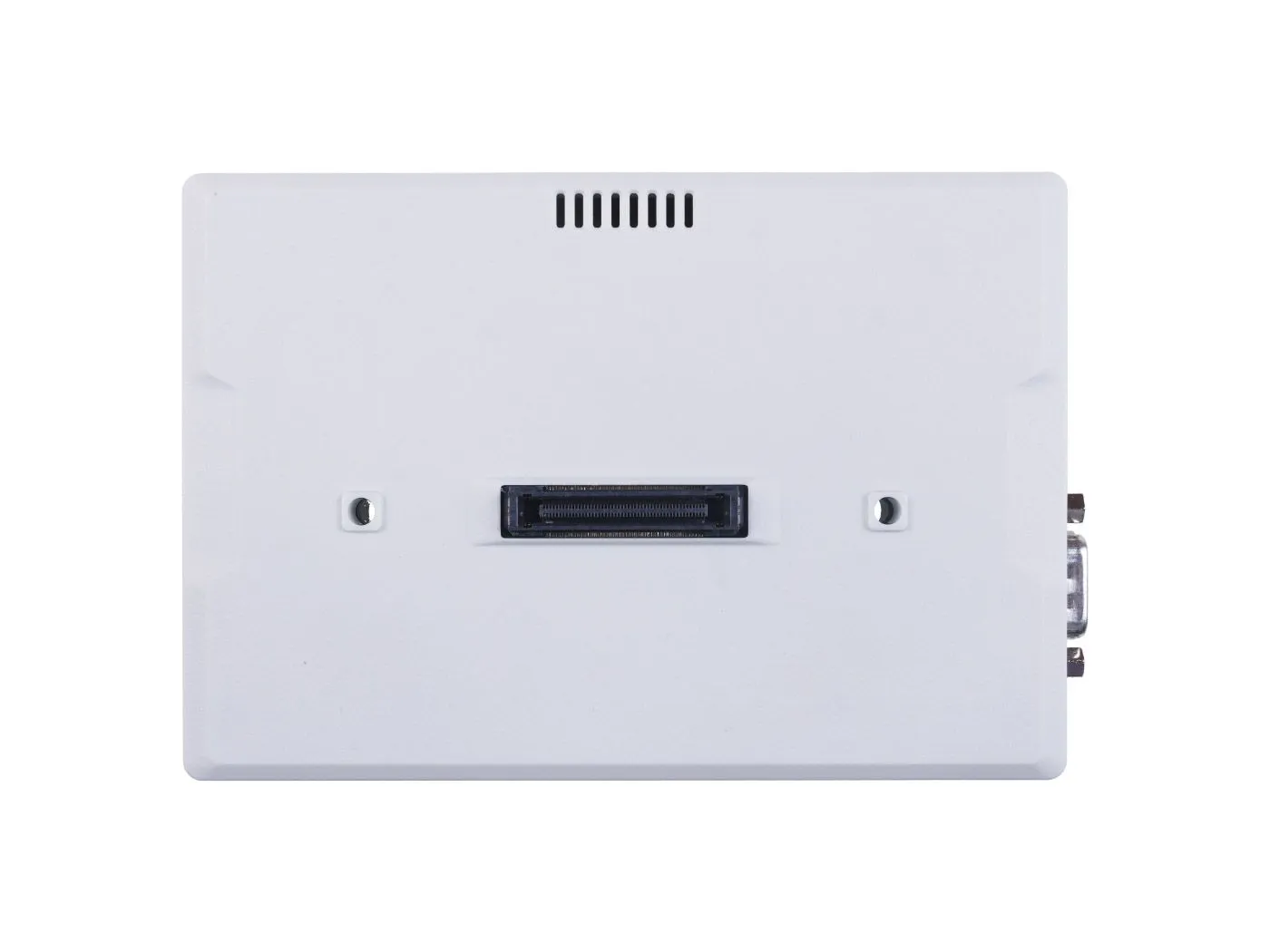

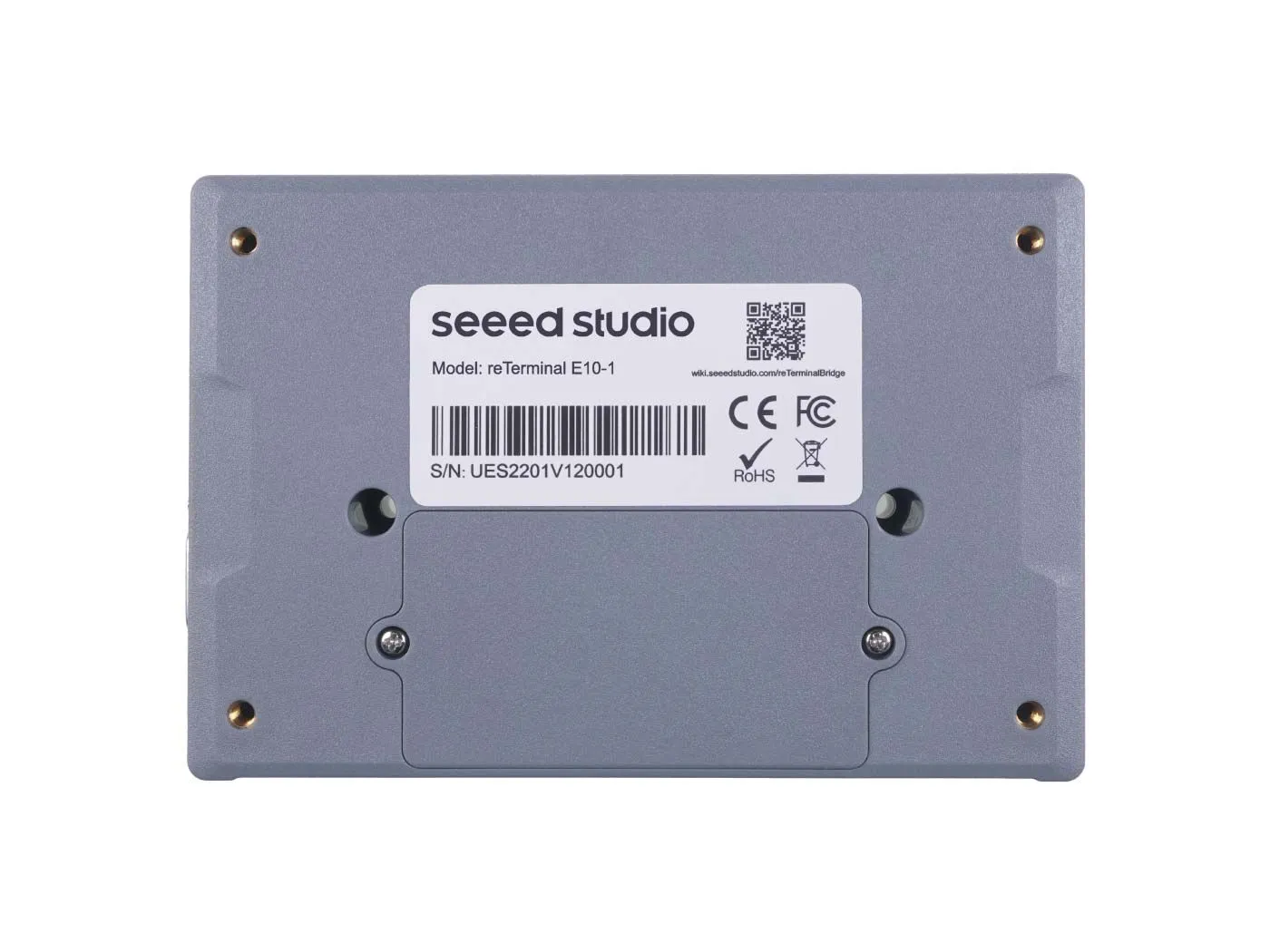

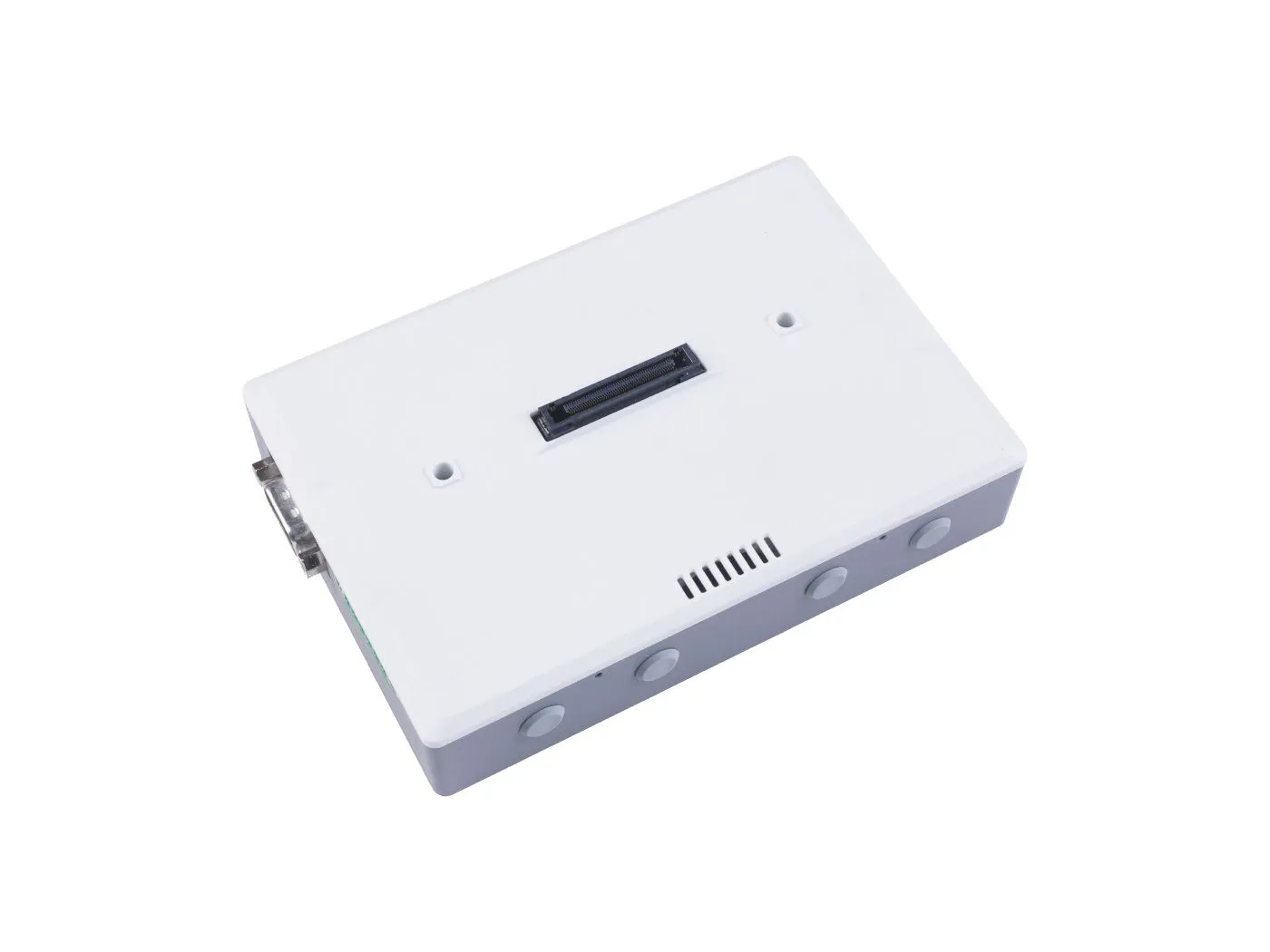

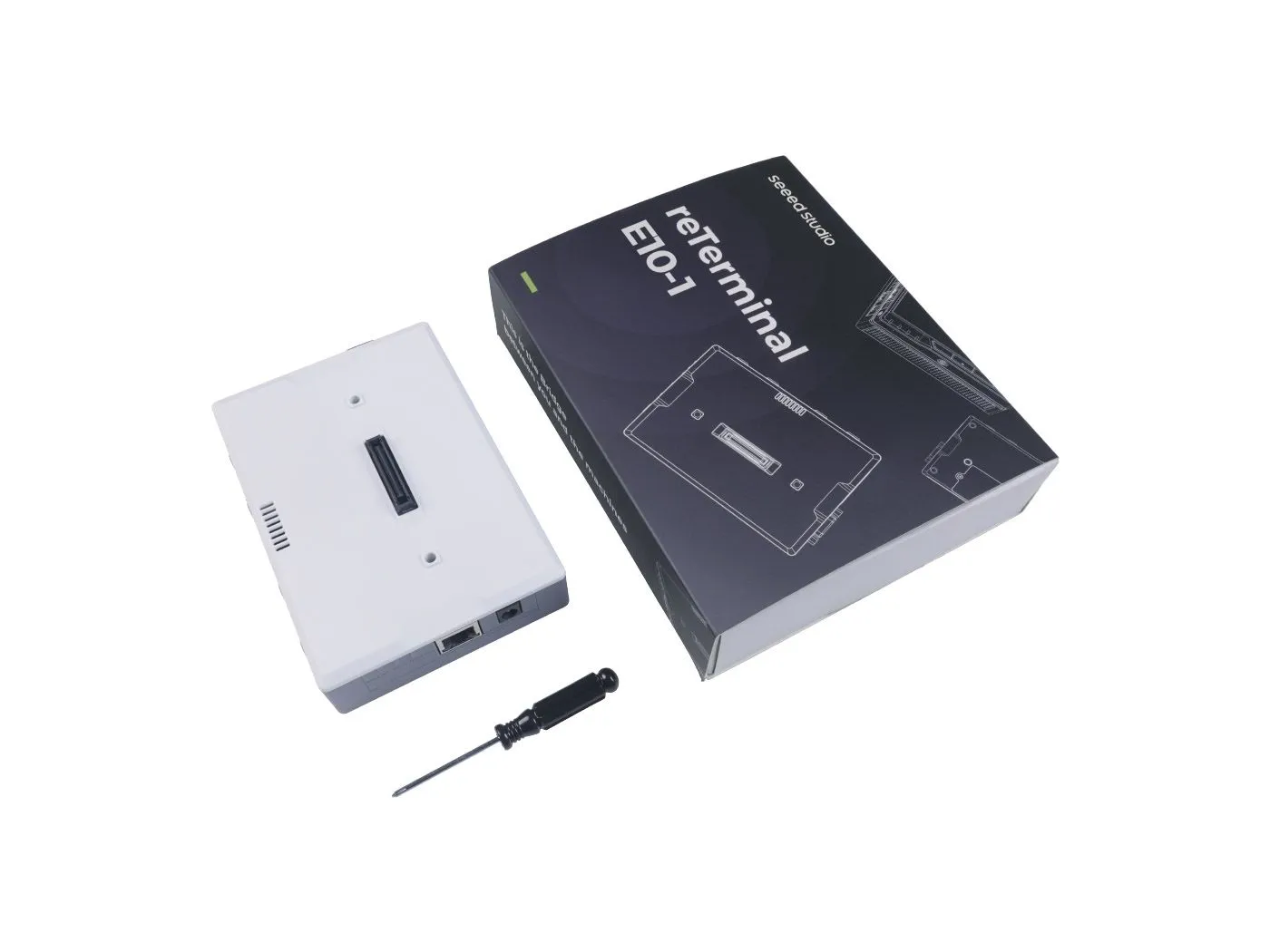

The reTerminal E10-1 enables you to develop and deploy more edge computing applications while using the , the Next Generation of Human Machine Interface. Featuring multiple bridge IC and high-function peripherals, this board gives the reTerminal the power of rechargeable and portable functions, enhanced wireless communication and industrial data transmission along with audio capability.
The reTerminal E10-1 is an expansion board and fully compatible with the reTerminal where they can be simply connected through the industrial high-speed signal connector right in the middle of the board. It applies the charge-discharge function for the reTerminal by equipping the UPS-18650 dual chargeable battery and connecting the DC jack power interface. Furthermore, there has been equipped with a Power over Ethernet(POE) module on the board, thereby the reTerminal E10-1 can be also charged through the Gigabit Ethernet RJ45 connector.
The board supports the reTerminal transmitting the data through the industrial interface like D89 Connector for RS-232 and integrated 6 Pin Terminal Connector for RS485 and CAN. Meanwhile, there are high-function mini-PCIe and M.2 B Key connectors on the board, which helps the reTerminal to apply LoRaWAN and LTE wireless function and SSD storage ability. Additionally, with an onboard card slot, it can also contribute to the reTerminal to transfer data through 4G/5G communication.
Manufactured by adding dual analog microphones and one speaker, the reTerminal E10-1 employs the audio capability to the reTerminal, thereby enabling the reTerminal to function in more applications like high-speed industrial, agriculture applications, or enhanced wireless home, individual usages. Leveraging the functions on the board, the reTerminal can be deployed in infinite applications like connecting for long-term communication in agriculture, or connecting for health care in the home.
Application
- Industrial: Machine monitoring, security alarm, industrial-level data transmitting and storing
- Agriculture: Crop monitoring, insect alarm, LoRa/LTE/5G wireless communication
- Home: Home monitoring, security alarm, power-off supported
- Individual: Mobile-Human Machine Interaction computer
Specification
| Power | DC Jack | Supply power to the reTerminal, the expansion board and the battery in DC 12V @3A | The DC Jack or PoE power supply should be prioritized. If the input power exceeds 15.6V, it will enter the input overvoltage protection state. |
|---|---|---|---|
| PoE | The PoE power input is RJ45 and supports a maximum of 25W power input. | ||
| UPS -18650 battery | 2 x battery holder with fixed pin.During the charging process, the battery will automatically stop charging if it overheats, and LED 2 will flash the alarm. | ||
| External I/O | RS-485 Interface | RS-485 supports a maximum communication rate of 256000 baud | Support automatic sending and receiving |
| Rs-232 Interface | Rs-232 supports a maximum communication rate of 256000 baud | ||
| CAN | CAN at common mode supports 500KBps communication rate, CAN at FD mode supports the communication rate up to 8Mbps | ||
| Antenna interface | Equip four antennas | ||
| RJ45 Interface for Giga Ethernet | Equip LAN7800 IC with the RJ45 interface and support PoE module | Ethernet supports maximum gigabit rates, but the LAN7800 driver is required | |
| DC jack Power interface | DC 12V @3A | ||
| 100 pins Industrial High-Speed Interface | Connect with reTerminal through 100 pins high-speed interface | ||
| Internal I/O | M.2 Interface | Support SSD, M.2 B KEY driver, USB3.0 GEN1 and SATA 2, suitable for 2242/2280 | Compatible with B key SSD |
| Mini-PCIe | Support UART, USB2.0, I2C, and SPI communication modes | Compatible with WM1302 SPI and WM1302 USB | |
| SIM card slot | Insert the LTE/4G/5G sim card |
The SIM card only supports mini-pcie
reTerminal E10-1 - Expansion Board supports DC Jack/PoE/UPS, Gigabit Ethernet, LTE/4G/5G/LoRaWAN, RS485/232, CAN, SATA 2.0$ 65.75 $ 50.58 Please select combo product attributes
